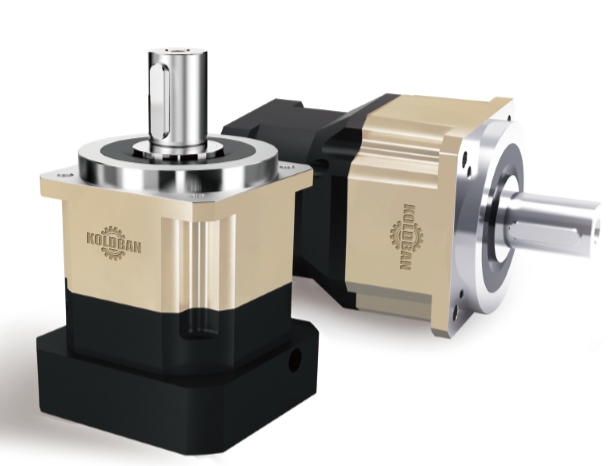

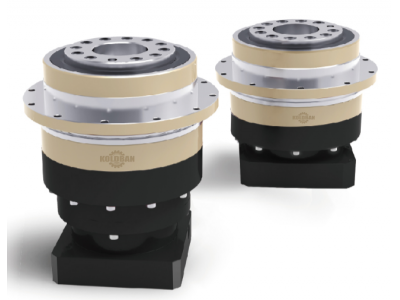

Series PL - Precision Planetary Gearunit
Series PL precision planetary line for miscellaneous automation applications in the lower torque range.High torque density unit with angular ball bearings for high load capacityAdaptable servo motor c
- Model：
Series PL precision planetary line for miscellaneous automation applications in the lower torque range.
High torque density unit with angular ball bearings for high load capacity
Adaptable servo motor connection
Simple motor assembly with clamp ring connection
Maintenance free for life
Variants:
<=1 or 3 arcmin Backlash, super precise version
<=3 or 5 arcmin Backlash, precise version
<=5 or 7 arcmin Backlash, standard version
Output Shaft Variants:
Flange
Solid Shaft
Keyway
PRODUCTS FEATURES
1.Low Noise: <= 65db.
2.Low Backlash: Backlash is under 3 arcmin.Backlash for 2-stage speed reduction is within 5 arcmin.
3.High Efficiency: Efficiency for 1-stage model >= 95%, For 2-stage model >= 92%.
4.High Input Speed: Input speed allows for up to 8000 RPM.
5.High Torque: Higher torque output than that of conventional planetary gear reducers.
6.High Stability: Employs high tensile strength alloy steel.Gear hardening is made for the entire gear instead of only surface hardening,which extends gear service life and maintain high accuracy as new after a long period of operation.
7.High Speed Reduction Ratio: The gear reducer is a modular design.The planetary gear box can be connected.Speed reduction ratio is over 1/1000.
APPLICATIONS
Precision Planetary Gear Reducer is widely used in the following applications:
1. Aerospace, military industry.
2. Medical health, electronic information industry.
3. Industrial robots, production automation, CNC machine tool manufacturing industry.
4. Motor, textile, printing, food, metallurgical, environmental protection engineering, warehouse logistics industr.
