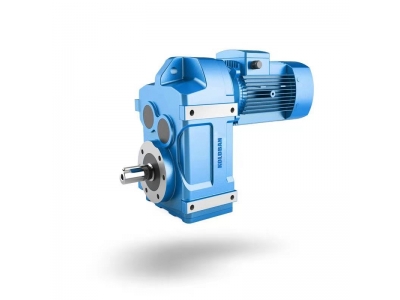

Series S – Shaft Mounted Helical Gearmotor

Series S – Shaft Mounted Helical Gearmotor

This series is compact and easy to mount. Flange-, foot- and hollow shaft-mounted versions, or combinations of these mounting options are available. These gearboxes are of a modular design. Output shaft and flange can be mounted to standard hollow-shaft gearboxes without modification of the gearbox. The housing has mounting points on both sides, allowing mounting from either side. The hollow-shaft gearboxes have new mounting options also for the input side. Input possibilities are standard (IEC B5 or B14), direct coupled or with solid input shaft. A combination with other gearbox types is possible with minimum change. In applications where efficiency and strength are important, hollow-shaft gearboxes are preferred to worm gearboxes. Hollow-shaft gearboxes can withstand higher overhung loads than other gearbox types.

  • Model：

  • Monoblock housing design,

  • Wide ratio, torque range and two or three stages can be in same housing

  • Reduction can be increased up to six stages,

  • Standard IEC B5 or B14 motor flanges,

  • Electromagnetic brake option,

  • Long life bearings,

  • GG20 and GGG40 cast iron housings,

  • 58-62 HRc hardened and grinded gears.


InputIntegral Gearmotor, free Input Shaft or Motor Adaptor
OutputHollow Shaft, Solid Shaft
Ratios3.77:1 bis 32625:1 and greater
TorqueUp to 18000 Nm
Power Range0.12 to 200 kW
MountingHollow Shaft, Flange, Clamp, Foot
OptionsIntegral Motor, Motor Adaptors
Motor StandardsGlobal Standards
