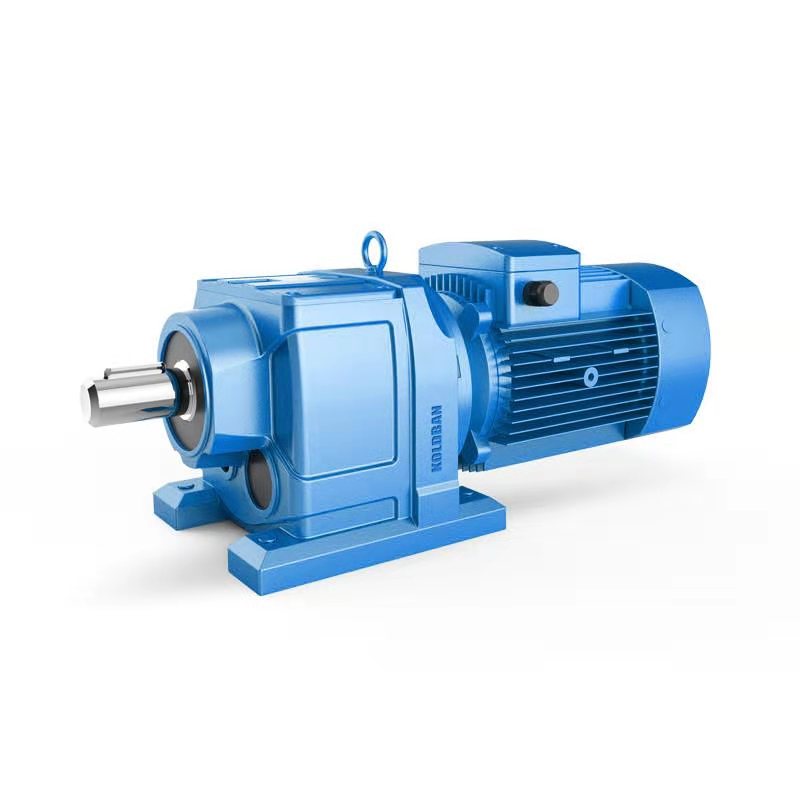

Series H - Helical Inline Gearmotor

Series H - Helical Inline Gearmotor

Series H - helical inline gearmotors have a one-piece (monoblock) housing, which has advantages in terms of rigidity, oil leakage, noise level and gear strength. The high gear quality achieved with modern manufacturing technologies is supplemented with housings made of GG20-22 material. Series H - helical inline gearmotors are easy to mount and flexible in usage. Depending on customer requirements direct or IEC B5 or B14 motor connections are available.

  • Model：

  • Monoblock housing design,

  • Wide ratio, torque range and 1, 2 or 3 stages can be in same housing,

  • Reduction can be increased up to six stages,

  • Standard IEC B5 or B14 motor connection flanges,

  • Electromagnetic brake option,

  • Long life bearings,

  • GG20 and GGG40 cast iron housings,

  • 58-62 HRc hardened and grinded gears.



Output ShaftSolid shaft
Output Shaft Direction(s)Any Mounting Direction (horizontal, vertical downward, vertical upward)
Mounting StyleFoot Mount, Flange Mount, Case Mount
Frame Size17 sizes (Output stages)
Reduction Ratio1.39:1 - 27000:1
Capacity0.12 kW - 160 kW
Motor TypesThree phase, premium efficiency, high efficiency, for inverters, outdoors, increased safety, flameproof, compatible with global standards, hollow input
