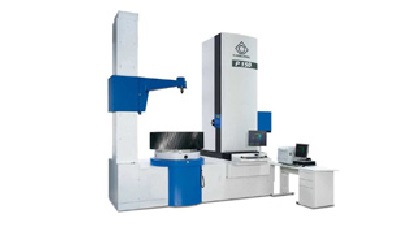

Gear Measurement
Quality guarantee structure: for gears that require high precision, we use gear measurement tools to make sure the evaluation criteria (tooth profile error, total alignment error, pitch error, etc) me
- Model：
Quality guarantee structure: for gears that require high precision, we use gear measurement tools to make sure the evaluation criteria (tooth profile error, total alignment error, pitch error, etc) meet the required specification.
Measurable gears: cylinder gear (external/internal teeth), bevel gear, worm
Measurable Dimension Chart
| Pitch | Mod.0.5–32mm |
|---|---|
| Largest outer diameter | 1800mm |
| helix angle | ±90° |
| Face width (spur gear) | max2,000mm |
| Distance between centers | max2,000mm |
| Largest weight capacity | 8,000kg |
