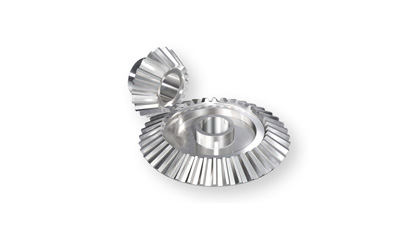

Straight Bevel Gear
When conveying rotation between two shafts, the gear can surely convey large power. It is most commonly used when the two shafts intersect at an angle not parallel to each other.
- Model：
When conveying rotation between two shafts, the gear can surely convey large power. It is most commonly used when the two shafts intersect at an angle not parallel to each other.
Gear Cutting Dimension Chart
| Largest pitch diameter | 902mm |
|---|---|
| Largest cone distance | 457mm |
| Largest face width | 152mm |
| Largest pitch | Mod.20 |
| Largest / smallest number of teeth | 200/5 |
