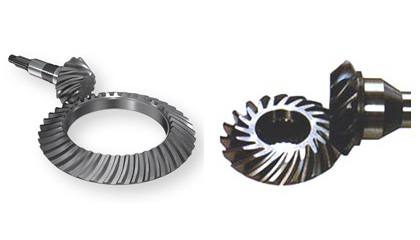

Hypoid Gear & Spiral Bevel Gear
Able to realize 12:1 reduction ratio with one binate. What used to take few gears to reduce the speed can be done in one binate, leading to conservation of space and total cost reduction.
- Model：
Able to realize 12:1 reduction ratio with one binate. What used to take few gears to reduce the speed can be done in one binate, leading to conservation of space and total cost reduction.
Gear Cutting Dimension Chart
| Largest pitch diameter | 838mm |
|---|---|
| Largest cone distance | 419mm |
| Largest face width | 117mm |
| Largest pitch | Mod.16.9 |
| Largest / smallest number of teeth | 200/5 |
